Low Voltage Cable Slab/Tiles/Cover

Introduction

Cable Slabs / Cable Covers are used as visual warning indicators for cables laid underground, while at the same time provides mechanical protection for underground laid cables in the event of excavation work. The Cable Slab/ Cable Covers are buried below the ground level and above the underground cables.

  • Cable Trench for Plastic Cable Slab
  • 1. DSSB-CSAP-250C-3
  • 2. DSSB-CSAP-250G-3

Click Image to Enlarge

No.
Product No.
Size
Colour
Drawing
1.
DSSB-CSAP-100G-1100mmm(W) x 1000mm(L) x 2mm (T)
Green
LV 1 HOOK 100 mm
2.
DSSB-CSAP-150G-1150mmm(W) x 1000mm(L) x 2mm (T)
Green
LV 1 HOOK 150 mm
3.
DSSB-CSAP-200G-1200mmm(W) x 1000mm(L) x 2mm (T)
Green
LV 1 HOOK 200 mm
4.
DSSB-CSAP-250C-1250mm(W) x 1000mm(L) x 2mm(T)
Customise

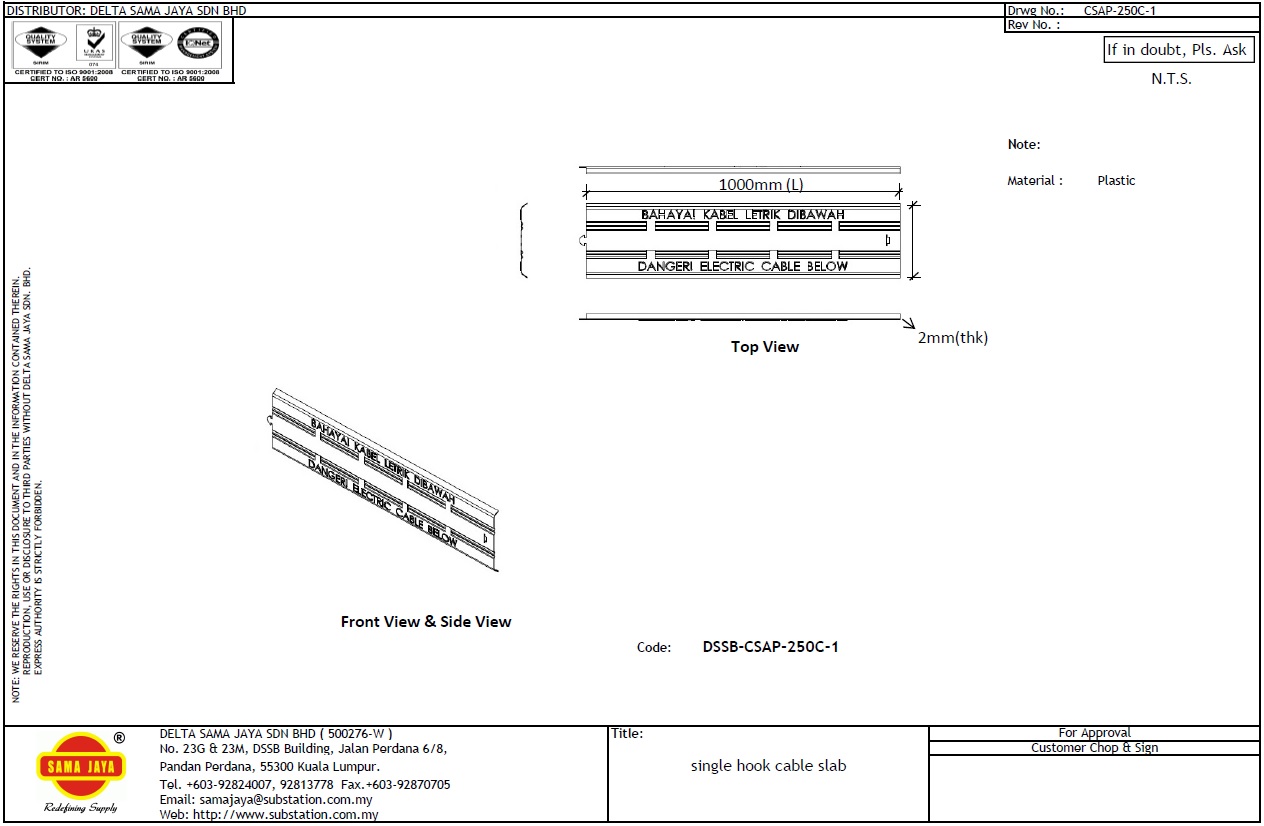

single hook
5.
DSSB-CSAP-250C-3250mm(W) x 1000mm(L) x 2mm(T)
Customise
Low Voltage 3 Hook Cable Slab
6.
DSSB-CSAP-250G-3250mm(W) x 1000mm(L) x 2mm(T)
Green
GREEN SLAB
7.
DSSB-CSAP-250Y-3250mm(W) x 1000mm(L) x 6mm(T)
Yellow
Low-Voltage-3-Hook-Cable-Slab

see High Voltage cable Slab
